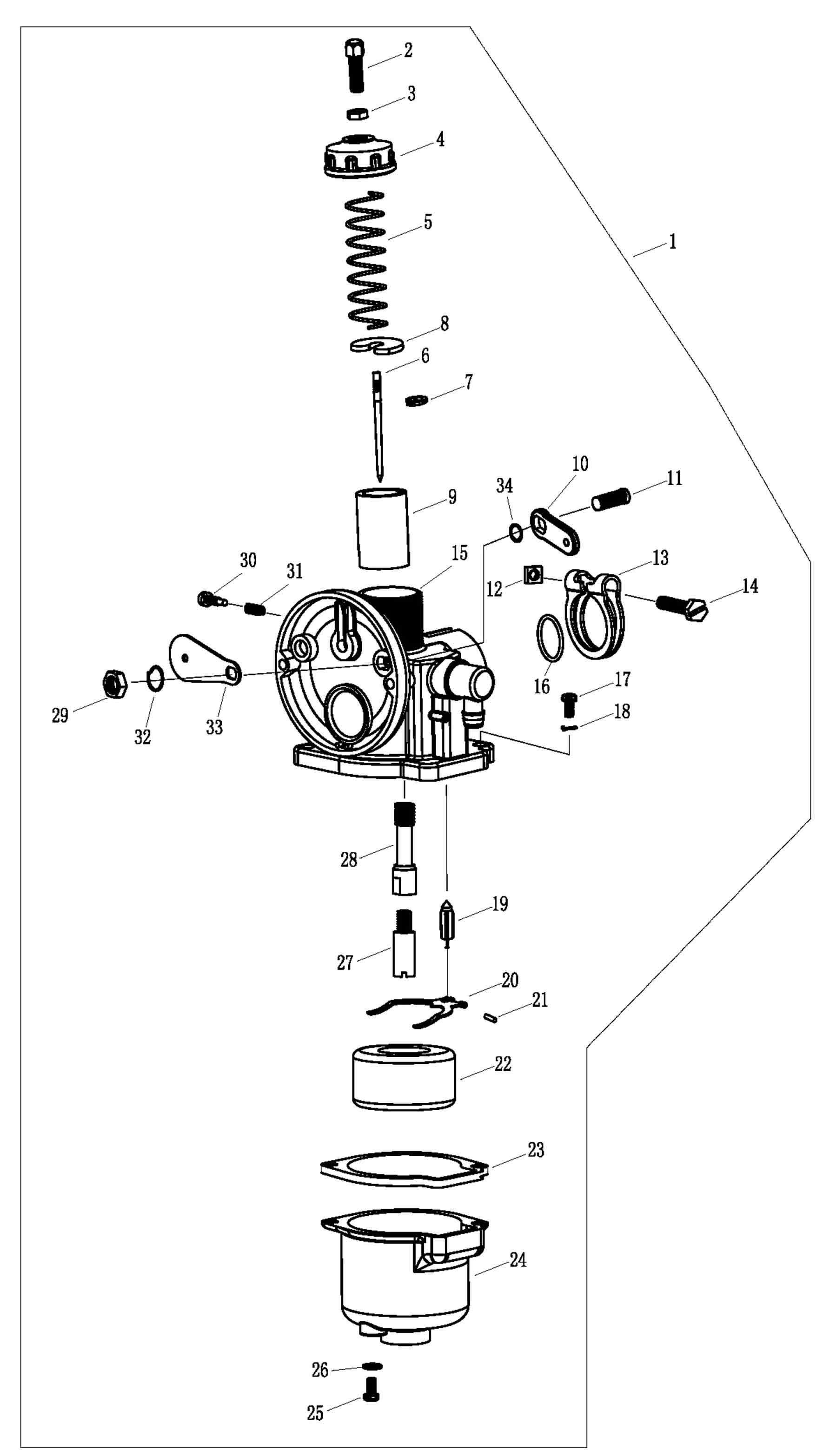

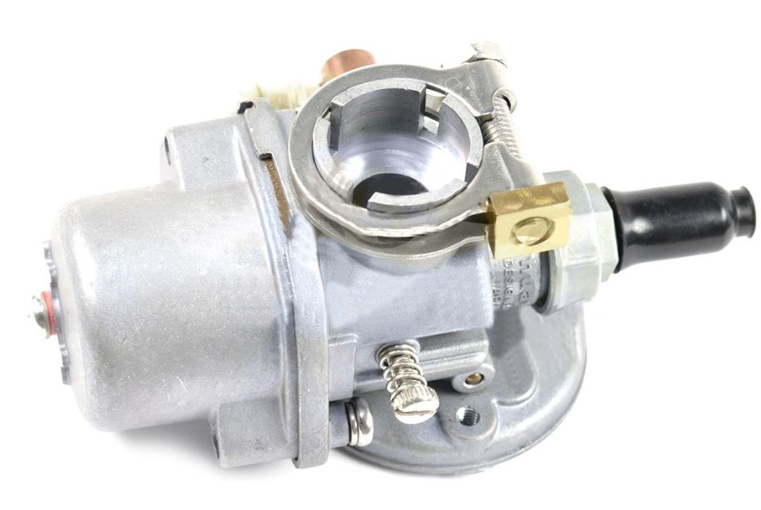

T3.6-04000500 | CARBURETOR ASSY | 2840 ₽ |
 |
T3.6-04000531 | BOLT, LOCKING | 370 ₽ |
|
T3.6-04000530 | NUT, LOCKING | 92 ₽ |
|
T3.6-04000529 | NUT,CARBURETOR | 350 ₽ |
|
T3.6-04000528 | SPRING,ACCELERZTION VALVE | 82 ₽ |
|
T3.6-04000525 | NEEDLE,ACCELERZTION VALVE | 138 ₽ |
|
T3.6-04000526 | RETAINER,ACCELERZTION VALVE | 33 ₽ |
|
T3.6-04000527 | GASKET,ACCELERZTION VALVE | 38 ₽ |
|
T3.6-04000524 | SEAT,ACCELERZTION VALVE | 420 ₽ |
|
T3.6-04000505 | LINK, CHOKE | 0 ₽ |
|
T3.6-04000504 | SCREW THROTTLE | 0 ₽ |
|
T3.6-04000511 | SQUARE NUT,CARBURETOR | 0 ₽ |
|
T3.6-04000510 | CLAMP, CARBURETOR | 0 ₽ |
|
T3.6-04000512 | CLAMPING, SCREW | 0 ₽ |
|
T3.6-04000503 | CARBURETOR | 0 ₽ |
|
T3.6-04000502 | SEAL | 0 ₽ |
 |
GB/T818-M4X12 | SCREW M4X12 | 39 ₽ |
|
GB/T193-4 | WASHER, SPRING | 0 ₽ |
|
T3.6-04000516 | VALVE, NEEDLE | 435 ₽ |
|
T3.6-04000518 | SWING STEM, FLOAT | 160 ₽ |
|
T3.6-04000517 | PIN, FLOAT | 138 ₽ |
|
T3.6-04000519 | FLOAT | 270 ₽ |
|
T3.6-04000520 | GASKET, FLOAT CHAMBER | 72 ₽ |
|
T3.6-04000521 | CUP, BODY | 0 ₽ |
| GB/T818-M4X6 | PAN HEAD SCREW M4 X 6 | 39 ₽ |
|
T3.6-04000523 | GASKET | 30 ₽ |
|
T3.6-04000515 | JET, MAIN | 320 ₽ |
|
T3.6-04000514 | NOZZLE, MAIN | 390 ₽ |
|
T3.6-04000522 | BRASS NUT | 57 ₽ |
|
T3.6-04000508 | SCREW, AIR ADJUSTING | 370 ₽ |
|
T3.6-04000509 | SPRING, AIR ADJUSTING | 69 ₽ |
 |
GB/T93-6 | SPRING WASHER 6 | 30 ₽ |
|
T3.6-04000507 | APRON, CHOKE | 0 ₽ |
|
T3.6-04000506 | GASKET | 92 ₽ |
